SYX6A Micro Surgical Forceps Set

Including:

No.	Name	Model	Specifications
1	Tying Forceps	53323A	Long angled,platform 4.5mm in length,105mm in total length
2	Corneal Scleral Forceps	53288A	Straight shafts with micro piece type tips,105mm in total length
3	Suturing Forceps	53325A	Straight,paltform4.5mm in length,1*2teeth of 0.15mm,105mm in total length
4	Micro-ophthalmic Forceps	53327A	Straight,serrated tips,0.25mm in distance,105mm in total length
5	Tying Forceps	53320A	Straight,platform4.5mm in length,105mm in total length
6	Suturing Forceps	53326A	Straight,platform 4.5mm in length,1*2 teeth of 0.20mm,105mm in total length

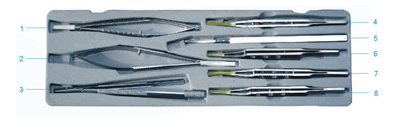

SYX8 Practical Micro-ophthalmic Surgical Instruments

Including:

No.	Name	Model	Specifications
1	Micro-needle Holder	55152B	Curved,110mm in total length
2	Micro-corneal Scissors	54108A/B	Curved, 12mm in blade lenngth,120mm in total length
3	Blade Holder	56202B	With spring,120mm in total length
4	Micro-ophthalmic Forceps	53327A	Straight,serrated tips,0.25mm in distance,105mm in total length
5	Iris Spatula	52391	Curved,1.7mm in tip width, 130mm in total length
6	Suturing Forceps	53325	Straight,platform 4.5mm in length,1*2 teeth of 0.15mm,105mm in total length
7-8	Tying Forceps	53322A	Curved,,platform 4.0mm in length,105mm in total length
7-8	Suturing Forceps	53320A	Straight,platform 4.5mm in length,105mm in total length

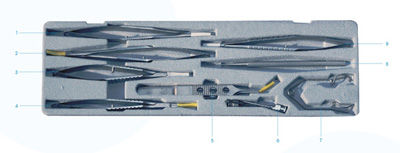

SYX9 Micro-operation Instruments Set for Intraocular Lens Implantation

Including:

No.	Name	Model	Specifications
1	Cataract Scissors Membrance	54264B	Straight tips,10mm in blade length,117mm in total length
2	Corneal Scissors	54109B	Slightly curved, 14mm in blade lenngth,120mm in total length
3	Tying Forceps	53576A	Spring type,straight,platform 5.0mm in length,110mm in total length
4	Suturing Forceps	53574A	Straight,platform 5.0mm in length,1*2 teeth of 0.15mm ,110mm in total length
5	Tying Forceps	53323A	Long angled,platform 4.5mm in length,105mm in total length
6	Coaxial I/A Cannula	56191A	Double curved tubes, Φ0.7mm
7	Eye Speculum	51288A	Wire speculum,stainless 15mm blade in length,50mm in total length
8	IOL Fixation Hook	51478A	0.2mm cylindrical tip,angled 15 degree,110mm in total length
9	Micro-needle Holder	55152A/B	Curved,110mm in total length

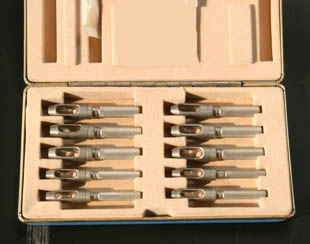

Fine Corneal Trephines Set

Including:

No.	Name	Model	Specifications
1-10	Corneal Trephines	56057A	Diameter of blade part 7.75mm, 60mm in total length
		56058A	Diameter of blade part 8mm, 60mm in total length
		56059A	Diameter of blade part 8.25mm, 60mm in total length
		56053A	Diameter of blade part 6.75mm, 60mm in total length
		56052A	Diameter of blade part 6.5mm, 60mm in total length
		56054A	Diameter of blade part 7mm, 60mm in total length
		56055A	Diameter of blade part 7.25mm, 60mm in total length
		56056A	Diameter of blade part 7.5mm, 60mm in total length
		56050A	Diameter of blade part 6mm, 60mm in total length
		56051A	Diameter of blade part 6.25mm, 60mm in total length

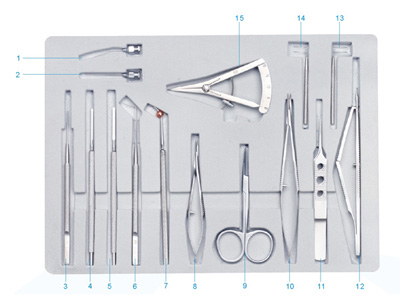

SYX15 Glaucoma Micro-operation Instruments Set

Including:

No.	Name	Model	Specifications
1	Aspiration Needle	56146	Angled Φ0.4mm,tip 27mm in total length
2	Aspiration Needle	56144	StraightΦ0.4mm,tip 27mm in total length
3	Goniotomy Knife	52231A	Straight,2mm in blade length,115mm in total length
4	Iris Spatula	52415	Straight,1.2mm in blade length,117mm in total length
5	Iris Spatula	52414	Straight,1.7mm in blade length,117mm in total length
6	Iris Spatula	52404A	Short angled,11mm in tip length
7	Cauter	52700	Ball shape tip, Φ5.5mm,119mm in total length
8	Vannas Scissors	54147B	Curved,9mm in blade length,84mm in total length
9	Micro Ophthalmic Scissors	54022	Curved round pointed tips,85mm in total length
10	Micro-corneal Scissors	54108A/B	Curved,12mm in blade length,120mm in total length
11	Suturing Forceps	53325A	Straight,1*2 teeth of 0.15mm in total length
12	Micro Trabecula Punche	56105A	Φ1mm,semicircle,forceps-type
13	Trabeculotomy Probe	56092	RightΦ0.28mm,80mm in total length
14	Trabeculotomy Probe	56090	Left,Φ0.28mm,80mm in total length
15	Castroviejo Caliper	56211A	Adjustable,measures from 0-20mm at 1mm increment

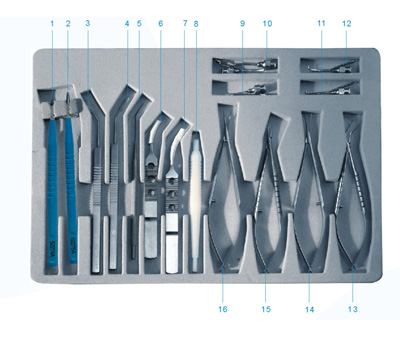

SYX16 Cataract Small Incision Instruments Set

Including:

No.	Name	Model	Specifications
1-2	Discission Knife	52274A	Tine,9mm in blade length,128mm in total length
1-2	Discission Knife	52275A	Roundish,9mm in blade length,128mm in total length
3-4	Nucleus Spatula	52334	Left,2.8mm in head width,125mm in total length
3-4	Nucleus Spatula	52335	Right,2.8mm in head width,125mm in total length
5	Cataract Knife	52276A	10.5mm in blade length,120mm in total length
6	Capsul Extractive Forceps	53328A	Angled,0.5mm in serration length,105mm in total length
7	Capsulorhexis Forceps	53317A	Round tips,0.3mm in tip width,105mm in total length
8	Infusion Handpiece	56203	100mm in total length
9	Irrigation/aspiration Cannula	56191A	Φ0.7mm double curved tubes
10	Lens Loop	56136A	3.5mm (width)*11mm(length)slightly
11-12	12 O’clock Cannula	56195	LeftΦ0.7mm
11-12	12 O’clock Cannula	56196	RightΦ0.7mm
13	IOL Implantation Forceps	53580A	Curved,R12,112mm in total length
14/16	Cataract Scissors Membrance	54268A/B	Straight,16mm in blade length,120mm in total length
14/16	Cataract Scissors Membrance	54269A/B	Curved,16mm in blade length,120mm in total length
15	Micro-needle Holder	55152A/B	Curved,110mm in total length

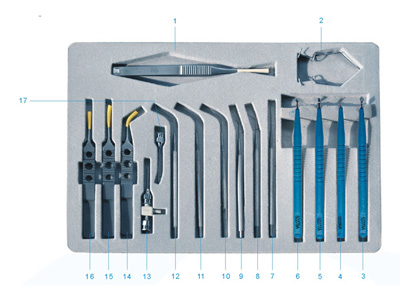

SYX17 Micro-surgical Instruments Set for Phaco

Including:

No.	Name	Model	Specifications
1	Micro-corneal Scissors	54108A	Curved,12mm in blade length,120mm in total length
2	Eye Speculum	51286A	Wire speculum,stainless 14mm blade in length,50mm in total length
3	Discission Knife for IOL Implantation	52279A	4mm in blade width,40degree,113mm in total length
4	Corneoscleral Knife	52286A	Straight,10degree,111mm in total length
5	Scleral Discission Knife	52277A	2mm in width of knife,40degree,113mm in total length
6	Slit Knife	52278A	3mm in width of knife,40degree,113mm in total length
7	IOL Fixation Hook	51474A	Angled, Φ0.2mm,110mm in total length
8	Lens Manipulator	51470A	“Y”shaped tip,0.7mm,115mm in total length
9	Capsule Polish	51472A	0.6*0.8mm elliptical tip,113mm in total length
10	Lens Nucleus Manlpulator	51473A	0.25mm in tip width,112mm in total length
11	Iris Spatula	52417A	Φ 0.2mm in tip width,112mm in total length
12	Lens Nucleus Hook	51474A	0.2mm in head width,115mm in total length
13	Aspiration Infusion of Cataract	56188A	Curved tip,triple joint, Φ0.6mm
14	Casulorhexis Forceps	53317A	Round tips,0.3mm in tip width,105mm in total length
15	Tying Forceps	53320A	Straight,platform,4.5mm in length,105mm in total length
16	Suturing Forceps	53325A	Straight,platform,4.5mm in length,1*2 teeth of 0.15mm,105mm in total length
17	Infusion Cannula	56197A	Angled,0.5*1.1mm elliptical tip

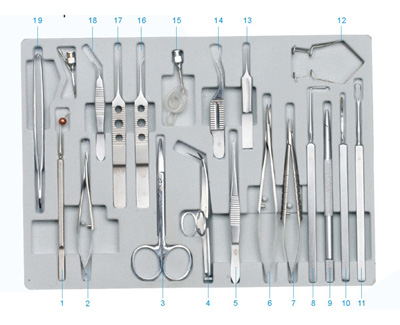

SZY-CBM19 Ophthalmic Operation Instruments Set

Including:

No.	Name	Model	Specifications
1	Cauter	52700	Ball shape tip, Φ5.5mm,119mm in total length
2	Vannas Scissors	54136B	Straight, 6.5mm blade in length,84mm in total length
3	Ophthalmic Scissors	54014	Curved blunt tips,100mm in total length
4	Iris Scissors	54060	Two sharp tips,90mm in total length
5	Ophthalmic Forceps	53076	Straight,1*2 teeth,100mm in total length
6	Corneal Scissors	54109A/B	Curved,platform 4.5mm in length,105mm in total length
7	Micro-needle Holder	55152A/B	Curved,110mm in total length
8	Strabismus Hook	52454	Blunt,135mm in total length
9	Blade Holder	56202B	With spring,120mm in total length
10	Iris Spatula	52391	Curved,1.7mm in tip length,130mm in total length
11	Lens Loop	52500	Curved,tip 4.5mm*15mm,140mm in total length
12	Eye Speculum	51286A	Wire speculum,stainless 14mm in blade length,50mm in total length
13	Corneal Scleral Forceps	53286	Straight,semicircle tips,70mm in total length
14	Iris Forceps	53004	Bend 1*2 teeth,70mm in total length
15	Coaxial 1/A Cannula	56191A (including 56199)	Double curved tubesΦ0.7mm
16	Tying Forceps	53322A	Curved,platform 4.5mm in length,105mm in total length
17	Tying Forceps	53320A	Straight,platform 4.5mm in length,105mm in total length
18	Capsulotomy Forceps	53274	Oblong spoon tips,curett 1.4mm*2.4mm,70mm in total length
19	Fixation Forceps	53340	Straight,0.7mm in serrated tips distance,110mm in total length

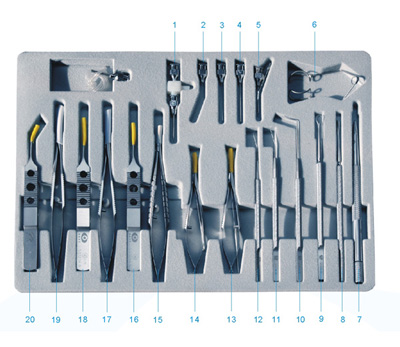

SYX20 Micro Instruments Set for Cataract and Intraocular Lens Implantation Surgery

Including:

No.	Name	Model	Specifications
1	Coaxial I/A Cannula	56190	Straight tip,triple joint,0.6mm
2-4	Aspiration Needle	56146	Angled Φ0.4mm tip,15degree,27mm in total length
		56144	Straight Φ0.4mm tip, 27mm in total length
		56148	StraightΦ0.7mm tip,15degree,27mm in total length
5	Coaxial I/A Cannula	56191A	Double curved tubes, Φ0.7mm
6	Eye Speculum	51288A	Wire speculum,stainless 15mm in blade length,50mm in total length
7	Blade Holder	56202B	With spring,120mm in total length
8	Lens Spoon	52574	8*2.5mm in spoon length,130mm in total length
9	Lens Loop	52488A	Tip 4mm(width)*6mm(length)curved loop,120mm in total length
10	Iris Spatula	52404A	Curved,11mm in tip length,120mm in total length
11-12	IOL Fixation Hook	51474A	Angled Φ0.2mm,110mm in total length
11-12	IOL Fixation Hook	51478A	0.2mm cylindrical tip,angled 15degree,110mm in total length
13-14	Vannas Scissors	54138B	Straight,6.5mm in blade length,90mm in total length
13-14	Vannas Scissors	54140B	Curved,6.5mm in blade length,84mm in total length
15	Micro-needle Holder	55152B	Curved,110mm in total length
16	Tying Forceps	53320A	Straight,platform 4.5mm in length,105mm in total length
17	Corneal Scissors	54109B	Slightly curved,14mm in blade length,120mm in total length
18	Suturing Forceps	53325A	Straight,platform 4.5mm in length,1*2 teeth of 0.15mm,105 mm in total length
19	Cataract Scissors Membrance	54264B	Straight tips,10mm in blade length,117mm in total length
20	Tying Forceps	53324A	Short angled,platform 4.5mm in length,114mm in total length

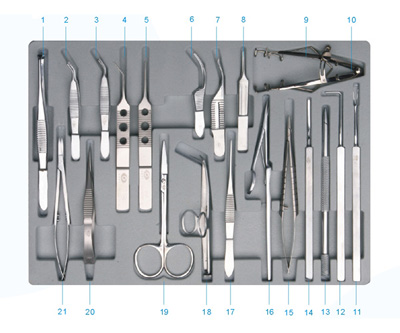

SZY-CBM21 Ophthalmic Operation Instrument Set

Including:

No.	Name	Model	Specifications
1	Fixation Forceps	53340	Straight,0.7mm in serrated tips distance,110mm in total length
2-3	Capsulotomy Forceps	53274	Oblong spoon tips,70mm in total length
4	Tying Forceps	53323A	Long angled,platform 4.5mm in length,105mm in total length
5	Tying Forceps	53320A	Straight,platform 4.5mm in length,105mm in total length
6-7	Iris Forceps	53042	Curved,1*2 teeth,60mm in total length
6-7	Iris Forceps	53004	Bend,1*2 teeth,70mm in total length
8	Corneal Scleral Forceps	53286	Straight,semicircle,70mm in total length
9-10	Eye Speculum	51286A	Open blades,stainless 14mm in blade length,75mm in total length
9-10	Eye Speculum	51262	Wire speculum,stainless 14mm in blade length,50mm in total length
11	Lens Loop	52500	Curved,tip 4.5mm(width)*15mm(length),140mm in total length
12	Strabismus Hook	52454	Blunt,curved tip,12mm in head width,135mm in total length
13	Blade Holder	56202B	With spring,120mm in total length
14	Iris Spatula	52391	Curved,1.7mm in tip width,130mm in total length
15-16	Micro-needle Holder	55152A/B	Curved,110 mm in total length
15-16	Micro-needle Holder	55115	Straight,130mm in total length
17	Corneal Scissors	54100	Straight,1*2teeth,100mm in total length
18	Iris Scissors	54060	Two sharp tips,90mm in total length
19	Ophthalmic Scissors	54006	Straight blunt tips,100mm in total length
20	Vannas Forceps	54136B	Straight,6.5mm in blade length,84mm in total length
21	Corneal Scissors	54100	Curved,R4.5mm

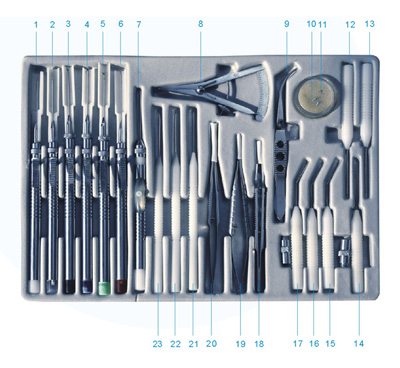

SYX36 Eyeground Ophthalmic Operation Instrument Set

Including:

No.	Name	Model	Specifications
1	Intraocular Forceps	53590	Hold type,circularhead
2	Intraocular Needle Holder	55143	Rectangle tip,135mm in total length
3-6	Intraocular Scissors	54270A	2.5mm in blade length,25 degree
		54274A	2.5mm in blade length,35 degree
		54278A	2.5mm in blade length,50 degree
		54280A	Fine blades with serrated handle,2mm in blade length,10degree
7	Aspiration Needle	56170A	Straight,140mm in total length,35mm in tip length,with adapter
8	Castroviejo Caliper	56211A	Adjustable,measures from 0-20 at 1mm increment
9	Sclera Spigot Holding Forceps	53582A	Curved,110mm in total length,grasping trough 2mm in length
10	Sclera Plug	56500	Φ0.9mm,3.5mm in total length
11	Infusion Cannulas	56156	2.5mm in beveled tips length
		56157	3mm in beveled tips length
		56158	4mm in beveled tips length
		56159	5mm in beveled tips length
		56160	6mm in beveled tips length
12-17	Extrusion Handpiece	56161	Straight, Φ0.4mm
		56163	Straight, Φ0.6mm
		56165	Straight, Φ0.9mm
		56162	Curved, Φ0.4mm
		56164	Curved, Φ0.6mm
		56166	Curved, Φ0.9mm
18	Suturing Forceps	53325A	Curved,tying platform,1*2 teeth of 0.15mm,105mm in total length
19	Micro-needle Holder	55152A/B	Curved,110mm in total length
20	Micro-corneal Scissors	54108A/B	Curved,12mm in blade length,120mmin total length
21-23	Scleral Discission Knife	52300	Straight,5mm in blade length,132mmin total length
